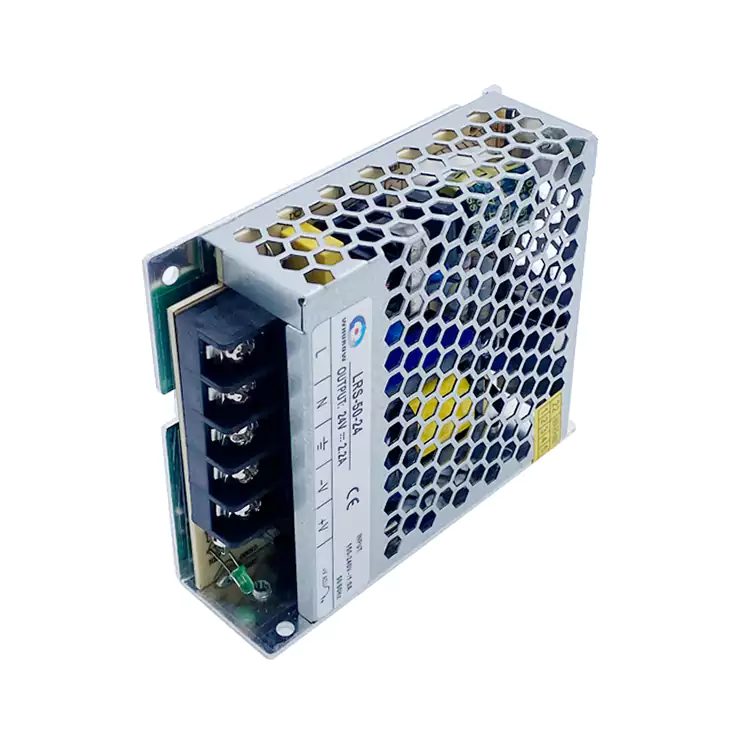

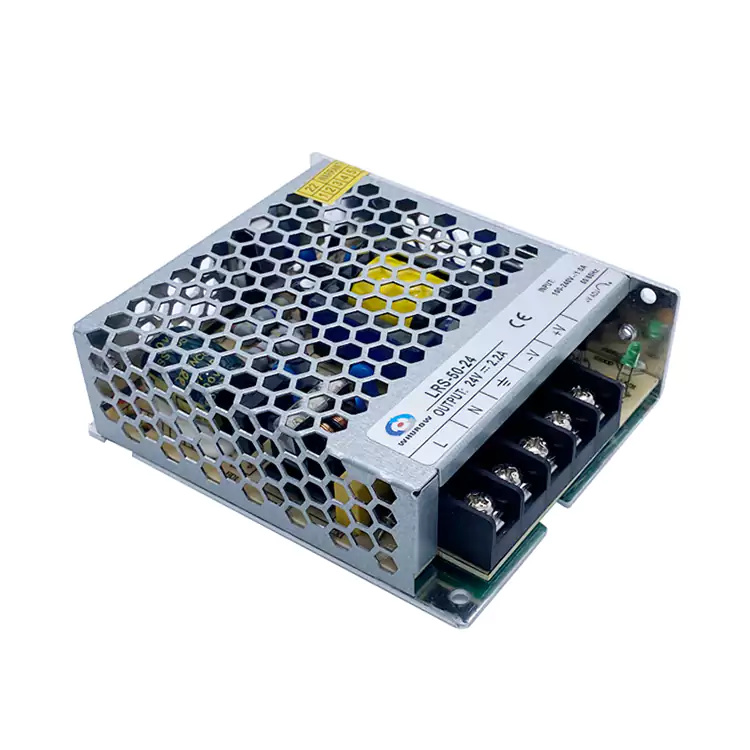

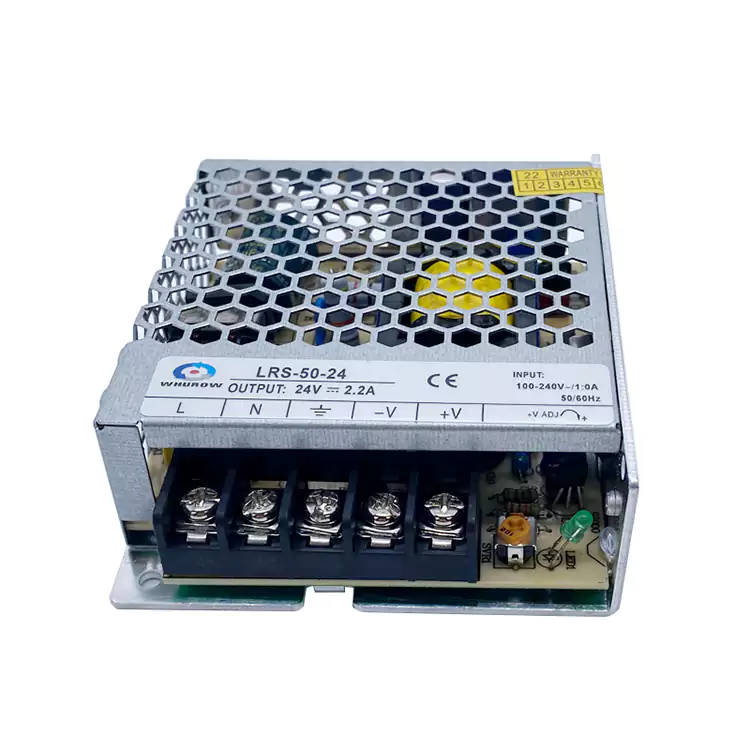

50W Single Output Switch Power Supply

The 50W Single Output Switch Power Supply LRS-50 series is a cost-effective enclosed switching power supply specially developed for commercial and general industrial scenarios. Rated at 50W, it adopts universal single-phase wide voltage input (85~264VAC), which can convert ordinary municipal alternating current into steady direct current. Compared with traditional power supplies, this series features an ultra-thin streamlined metal housing, optimized heat dissipation layout and mature circuit design. It boasts high conversion efficiency, low heat emission and stable continuous running performance. Equipped with comprehensive safety protection circuits, it is a mainstream economical power source widely used in automation control, monitoring, access control, LED lighting and small instrumentation equipment worldwide.

Product Feature

✅ Ultra-thin Compact Design & Space-saving Slim body greatly reduces occupied space inside electrical cabinets, convenient for installation in narrow equipment interiors and compact control boxes.

✅ High Efficiency & Low Heat Generation Advanced switching circuit improves energy utilization efficiency, effectively lowers heat accumulation during long-term continuous operation and extends service life.

✅ Four-fold Integrated Safety Protection Built-in overvoltage, overcurrent, short-circuit and overload protection systems. The power supply will automatically stop output once abnormal conditions occur, fully safeguarding connected electrical equipment.

✅ Stable Operation for Multiple Scenarios It maintains consistent output performance within the temperature range of -10℃ to +60℃, applicable to indoor commercial spaces and conventional factory environments.

✅ Simple Installation & Rich Voltage Options Standard wall-hole design for quick fixed installation; multiple DC output voltages are available to satisfy diversified low-power power supply demands.

Wide Application Scenarios

• Small PLC industrial control systems

• CCTV surveillance & security monitoring equipment

• Access control systems, electric locks and attendance machines

• Indoor LED light strips, advertising light boxes and signage lighting

• Small sensors, solenoid valves and automation accessories

• Testing instruments and electronic control devices
